Specifications

Product Features

  • Standard product is sold with ON/OFF application.
  • Voltage Range: 100~305 VAC, 142~431 VDC for continuous use; 320 VAC for 24 Hrs; 360 VAC for 1 Hr.
  • 1-10 V Dim, DALI Driver, and Emergency Kit can be applied.
  • Impact resistant tempered glass with high transparency.
  • Silicone sealed.



Specifications

BodyElectrostatic Powder Coated
LEDHigh Efficient Midpower LED
Beam Angle Options30°–60°–90°–120°
DiffuserImpact Resistant Tempered Glass with High Transparency
Inner Cutting Size350x350 mm
Color Rendering Index (CRI)> 80
PF (Power Factor)> 90
Operating Voltage100~305 Volt AC
LED Life60.000 Hours
Body Color RAL CodeRAL 9016
Total Power of Luminaire105 Watt
Luminous of Luminaire13.996 Lm
Efficiency of Luminairemin 133 Lm/W (6500 K)
Protection Mark (IP) IP 65
Warranty5 Years
Kanopy
More Options

More Options

 Total Power of LuminaireLuminous of LuminaireEfficiency of LuminaireDimensions (mm)Package AmountWeight (kg)
100 Watt105 W13.996 Lmmin 133 Lm/W490x490x10017
120 Watt116 W15.000 Lmmin 129 Lm/W490x490x10017





Body ColorWhite, Black, Optional RAL
Light Color (Kelvin)3000, 4000, 6500

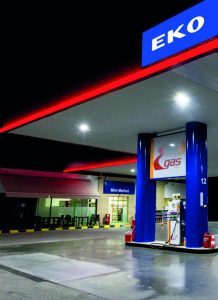

Application AreasWarehouses, Feactories, High Ceilings, Gas Stations
Technical Drawing

Technical Drawing for Kanopy
