Elsa-76
| Body | Extruted aluminium body with electrostatic powder coated, |
| Diffuser | Policarbonate Glass, |
| Optic | High efficiency reflector; Narrow, medium and wide beam angle options |
| Luminaire Efficiency | 103lm/W |
| Light Source | 50.000 hours Led lifetime, high effficiency COB LED |
| Color Rendering Index | CRI>80,CRI>90 |
| Power Factor | Pf>90 |
| Operating Voltage | 220-240V AC / 50-60 Hz |
| Optional Features | Compatible with Monophase or Triphase rail system, Please inquire for optional power values. |
Product Options
| Consuming Power | Color Temperature | Angle | Lumen | Protection | Forward Current | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 9W | 2700-3000-4000-5000-6500K | 15°,24°,36°,60° | 927lm | IP40 | 200mA | Ø76x165mm | 0,7 Kg |
| 14W | 2700-3000-4000-5000-6500K | 15°,24°,36°,60° | 1440lm | IP40 | 350mA | Ø76x165mm | 0,7 Kg |

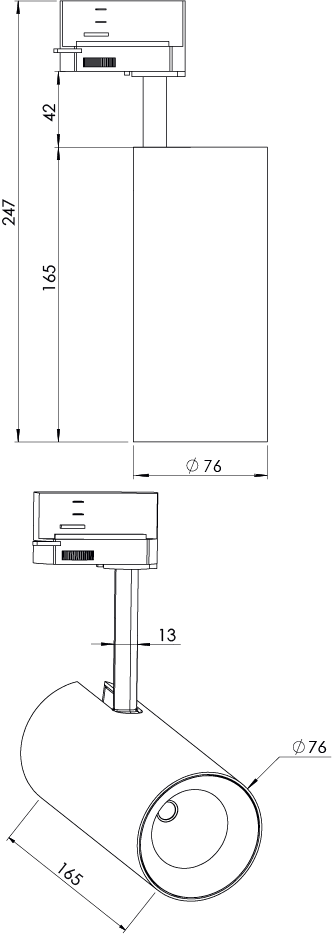

Technical Drawings
Elsa-76
Application
Elsa-76
