Lins 85
| Body | Extruted aluminium body with electrostatic powder coated |
| Diffuser | Policarbonate Glass |
| Optic | High efficiency reflector; Narrow, medium and wide beam angle options |
| Luminaire Efficiency | 103lm/W |
| Light Source | 50.000 hours Led lifetime, high effficiency COB LED |
| Color Rendering Index | CRI>80,CRI>90 |
| Power Factor | Pf>90 |
| Operating Voltage | 220-240V AC / 50-60 Hz |
| Optional Features | Phase-cut, 1-10V and DALI dimming option avaible upon request Emergeny kit system can be integrated, |
Product Options
| Consuming Power | Color Temperature | Angle | Lumen | Protection | Forward Current | Dimensions | Cut dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| 7W | 2700-3000-4000-5000-6500K | 15°,24°,36° | 720lm | IP20 | 180mA | Ø85x65mm | Ø78mm | 0,46 Kg |
| 9W | 2700-3000-4000-5000-6500K | 15°,24°,36° | 927lm | IP20 | 200mA | Ø85x65mm | Ø78mm | 0,46 Kg |
| 14W | 2700-3000-4000-5000-6500K | 15°,24°,36° | 1442lm | IP20 | 350mA | Ø85x65mm | Ø78mm | 0,46 Kg |

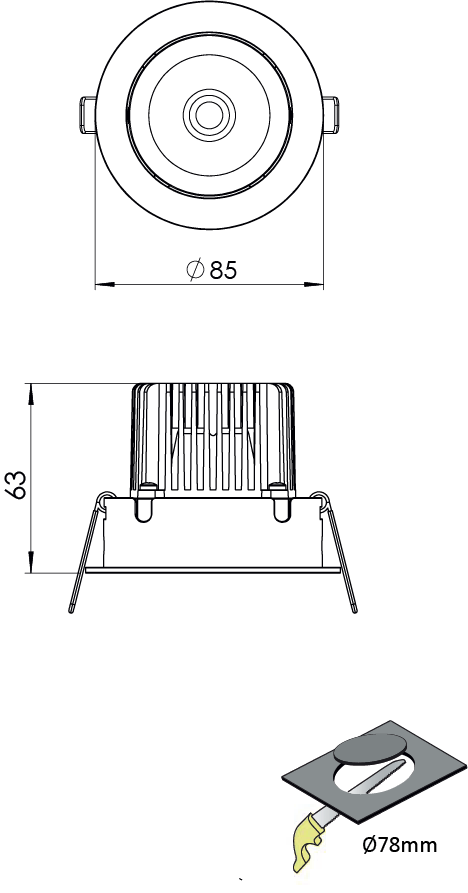

Technical Drawings
Lins 85
Application
Lins 85
