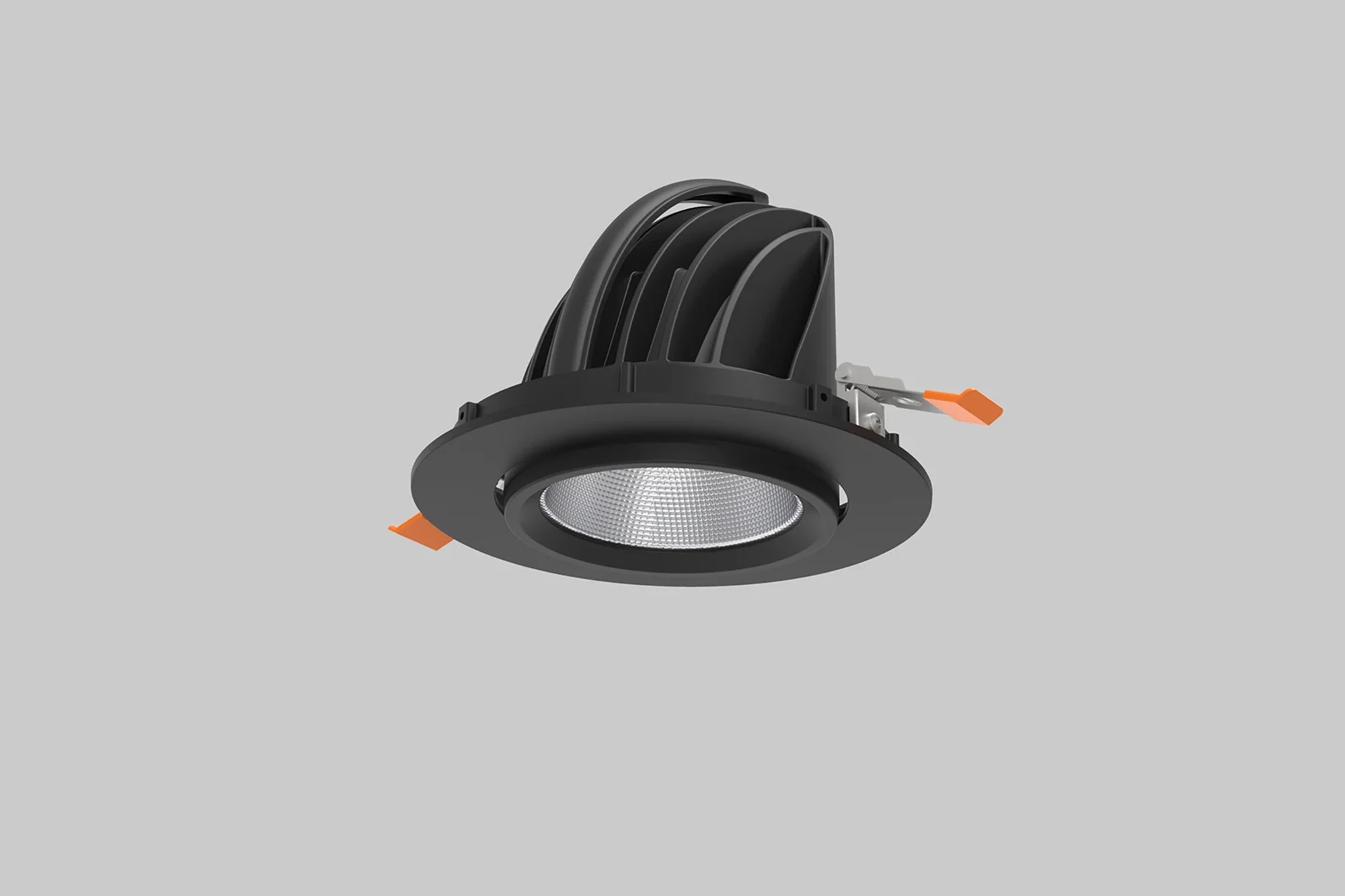

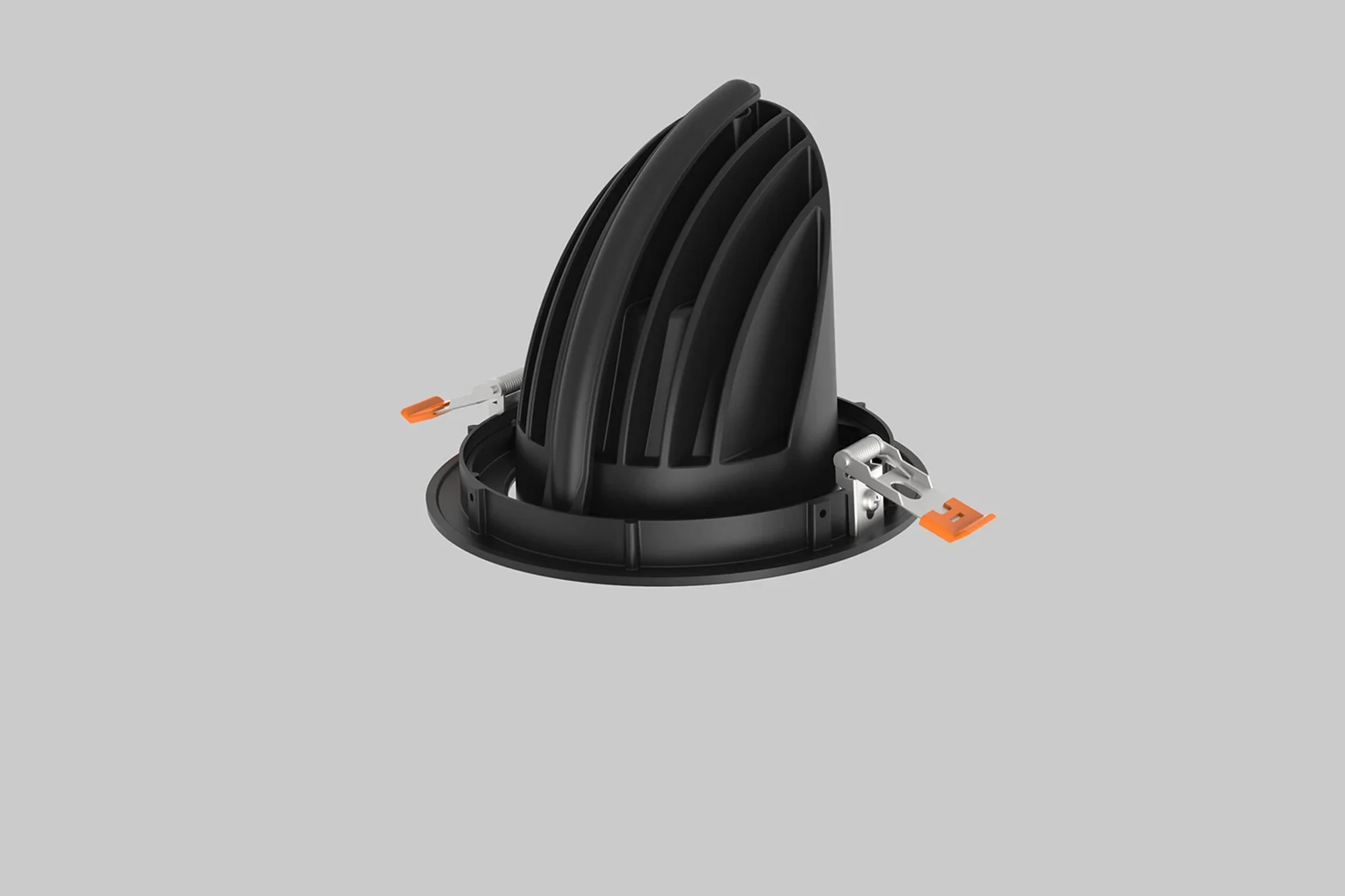

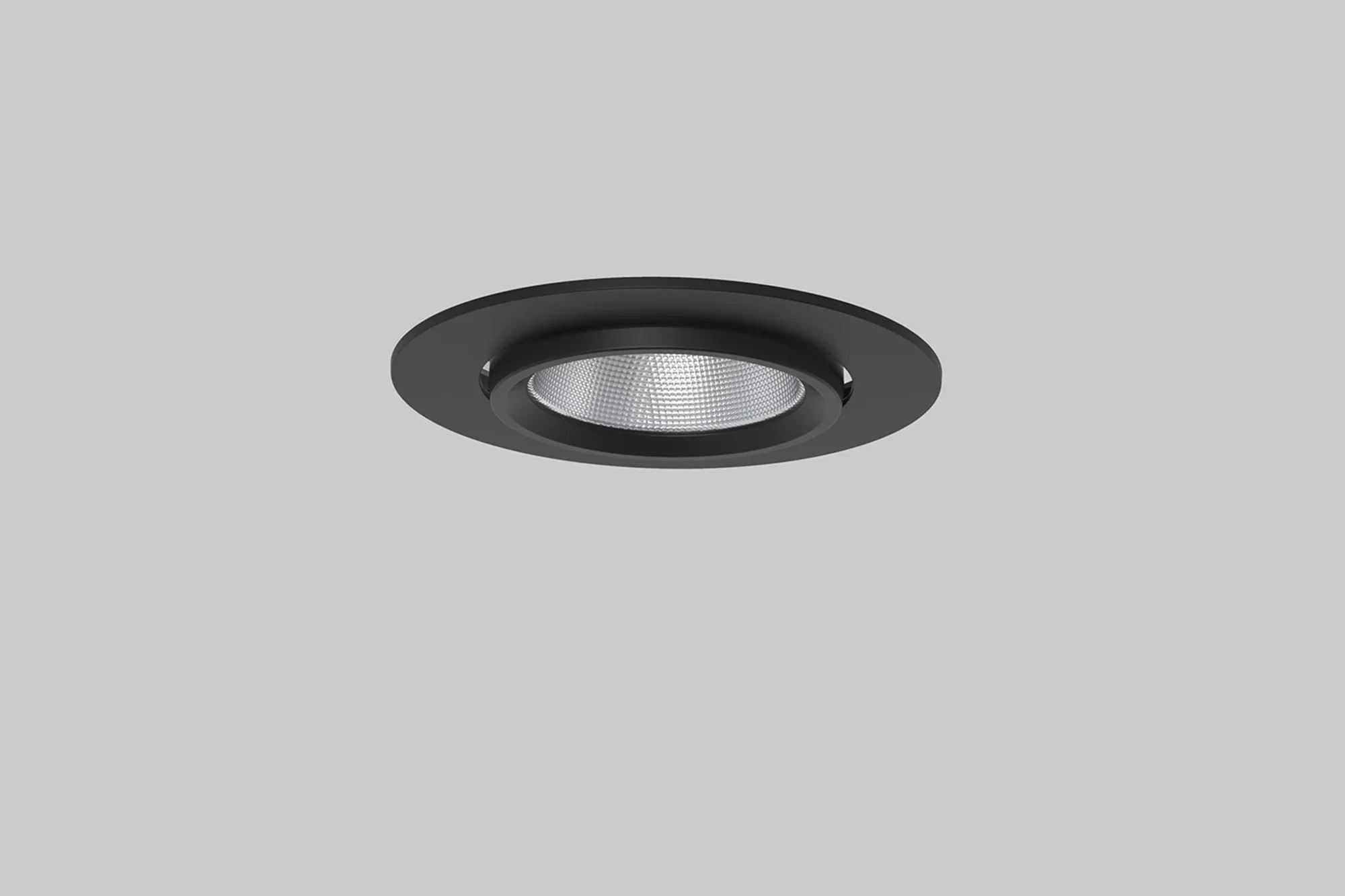

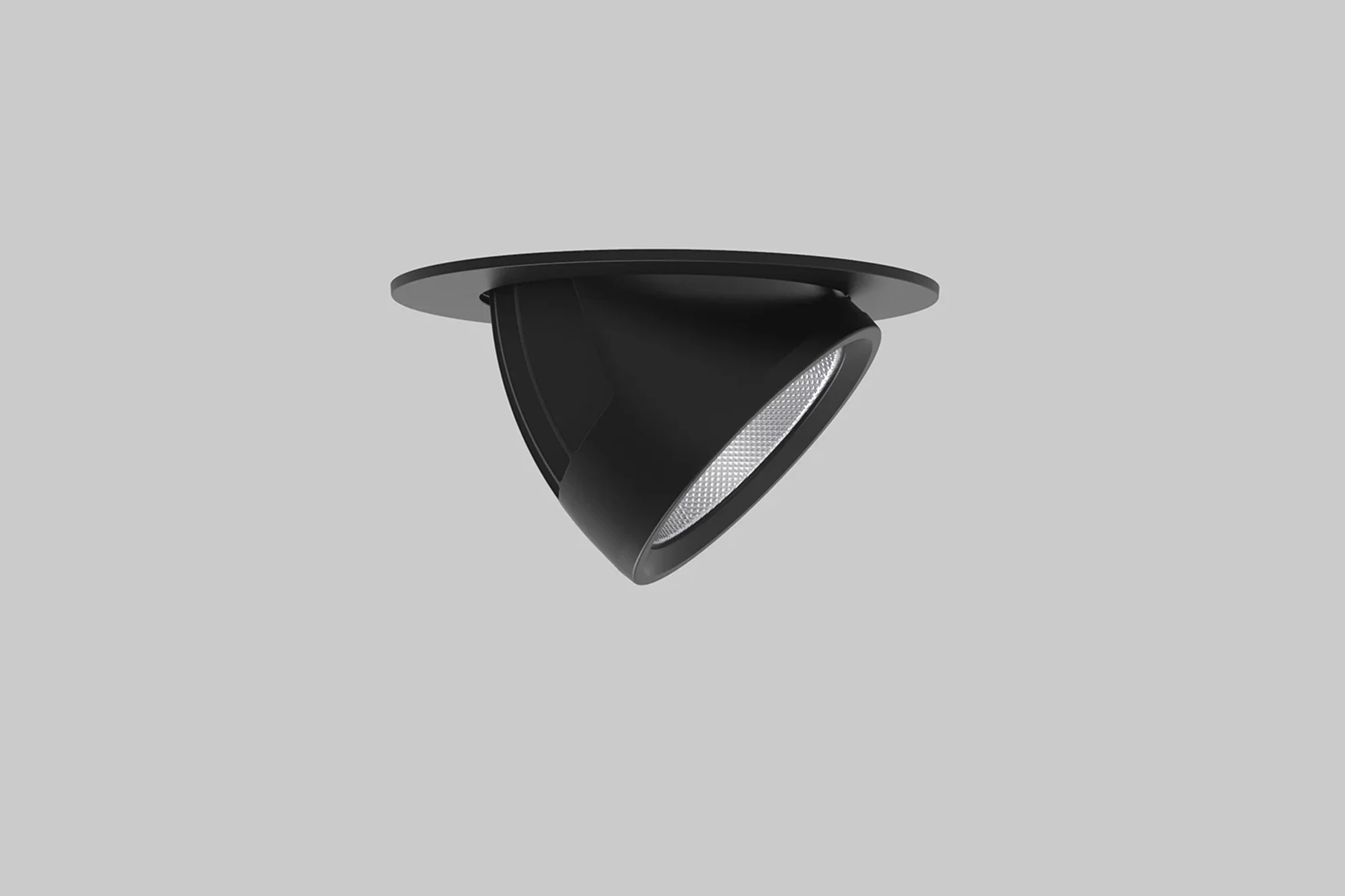

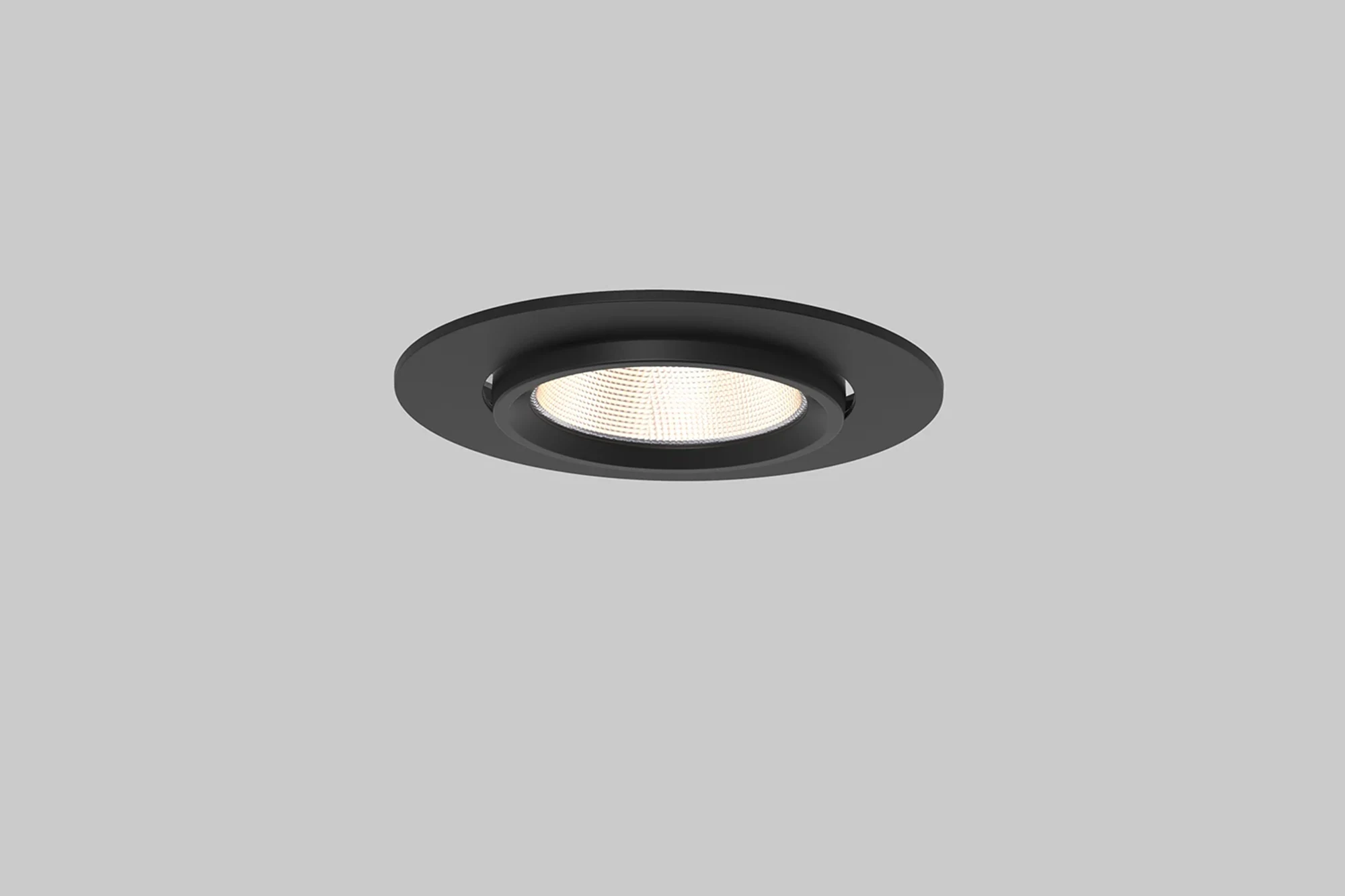

Malm
| Body | Die-cast aluminium body with electrostatic powder coated |
| Optic | High efficiency reflector and PC glass |
| Luminaire Efficiency | 91lm/W |
| Light Source | 50.000 hours Led lifetime, COB LED |
| Color Rendering Index | CRI>80,CRI>90 |
| Power Factor | Pf>90 |
| Operating Voltage | 220-240V AC / 50-60 Hz |
| Optional Features | Emergency kit system can be integrated, Please inquire for optional power values. |
Product Options
| Consuming Power | Color Temperature | Angle | Lumen | Protection | Dimensions | Weight |
|---|---|---|---|---|---|---|
| 20W | 2700-3000-4000-5000-6500K | 40° | 1820 lm | IP20 | Ø190 x 155 mm | 1,5 Kg |
| 28W | 2700-3000-4000-5000-6500K | 40° | 2548 lm | IP20 | Ø190 x 155 mm | 1,5 Kg |
| 35W | 2700-3000-4000-5000-6500K | 40° | 3185 lm | IP20 | Ø190 x 155 mm | 1,5 Kg |

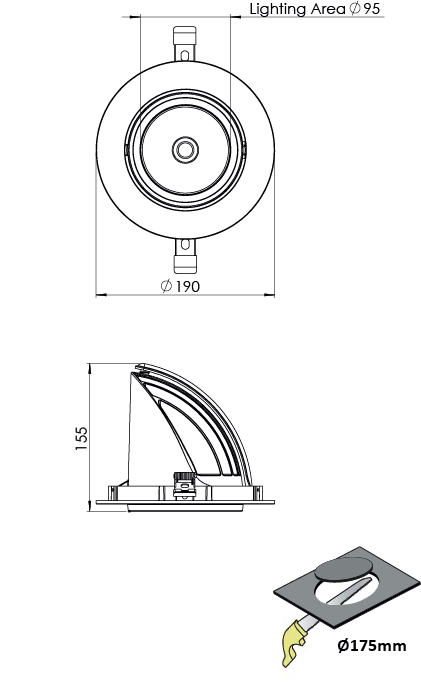

Technical Drawings
Malm

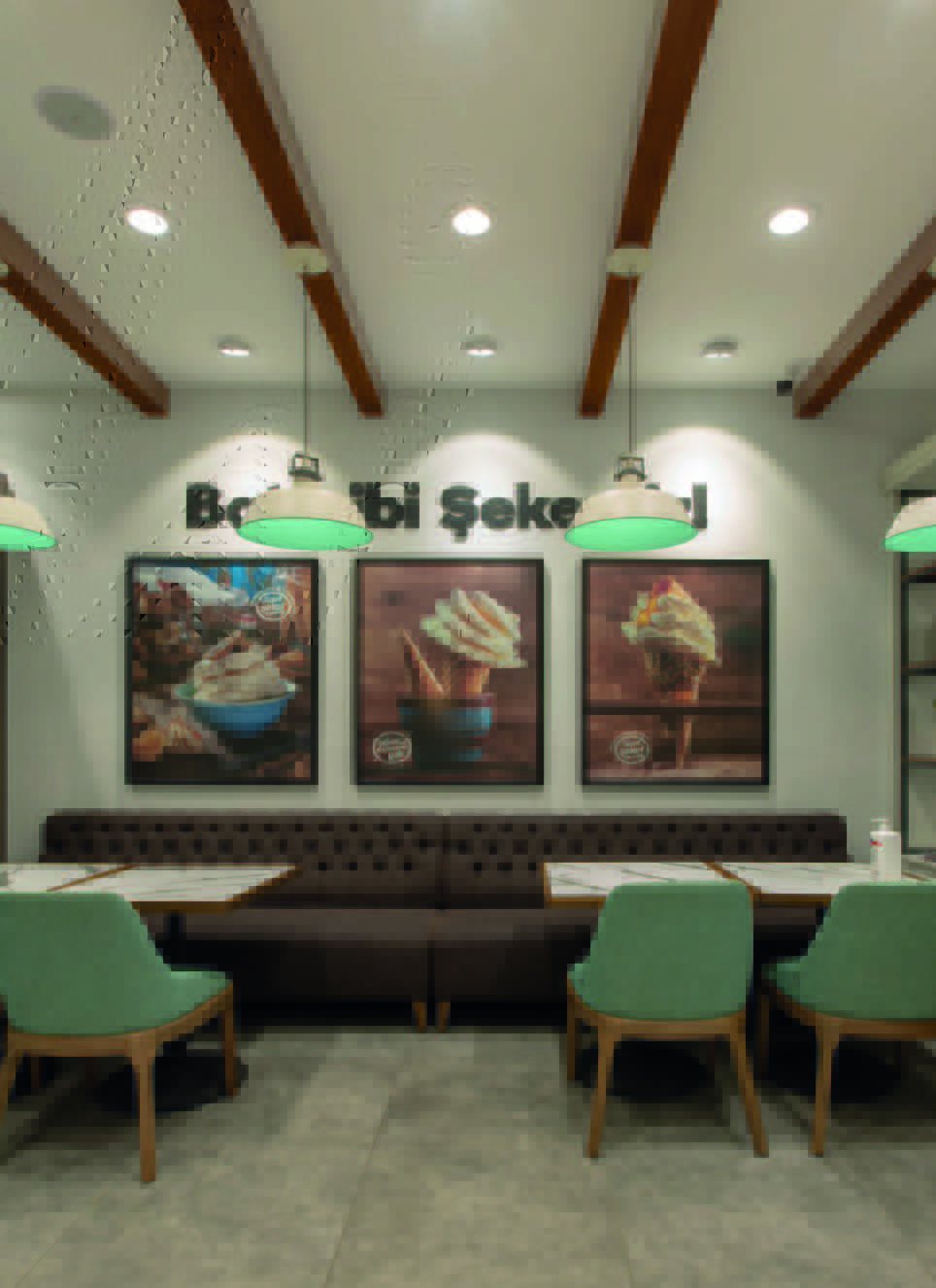

Application
Malm
